Mirabox: much better than GuruPlug

This quick review aims at describing my first contact with GlobalScale's Mirabox, how it compares with the other machines I've used before, namely the GuruPlug and the Dockstar, then how I managed to unbrick it.

Switching to the Mirabox

The Dockstar is nice but still limited to one port and has limited performance. After all the overheating issues, GlobalScale finally abandonned the GuruPlug Server Plus and replaced it with the DreamPlug which was a much nicer and safer design. I had one in hands and was considering buying one. I'm among the people who complain a lot about poor quality and point the finger at companies who put awful products on the market and do nothing to fix them. But when these people go back to the blackboard to completely redesign the product, I applaud. So I was OK with ordering a new product from them again.

When wandering on GlobalScale's web site last year, I noticed some teasing for the upcoming Smile Box, then the Mirabox. Both were using the same platform, a new Marvell Armada370 (ARMv7) at 1.2 GHz. The Mirabox has 1GB of RAM, 1GB of NAND flash, 2 GigE ports, a PCIe port, a MicroSD slot, an RTC with a battery, 2 USB3 ports, well it looked really nice. It was not much more expensive than the DreamPlug, so I finally decided to order one as well as a JTAG adapter in case things go wrong.

As soon as I received the box, I couldn't resist opening it. I was quite impressed by the quality of the hardware design. There is a very clean PCB with BGA chips on both sides, not a single wire at all, not even a heatsink. The device is very thin, basically the thickness of the RJ45 ports. There are jumpers inside, as well as serial and JTAG connectors that are compatible with the GuruPlug's adapter. Be careful when opening, the small plastic part which conducts the light from the leds sits in an unstable position and is annoying to reinstall. I finally glued it to the case.

Board inside
Unstable parts
WiFi antenna

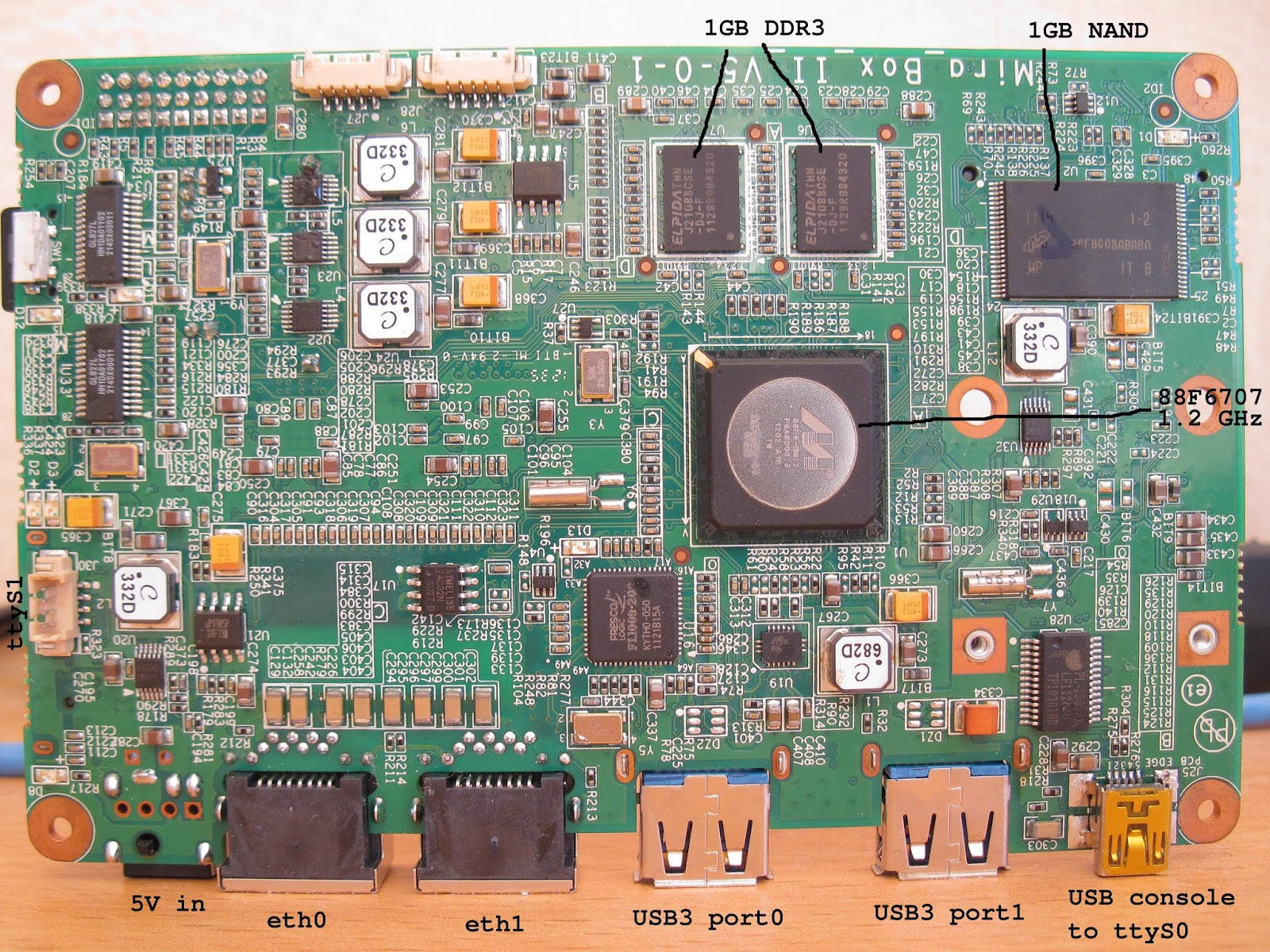

Board bottom

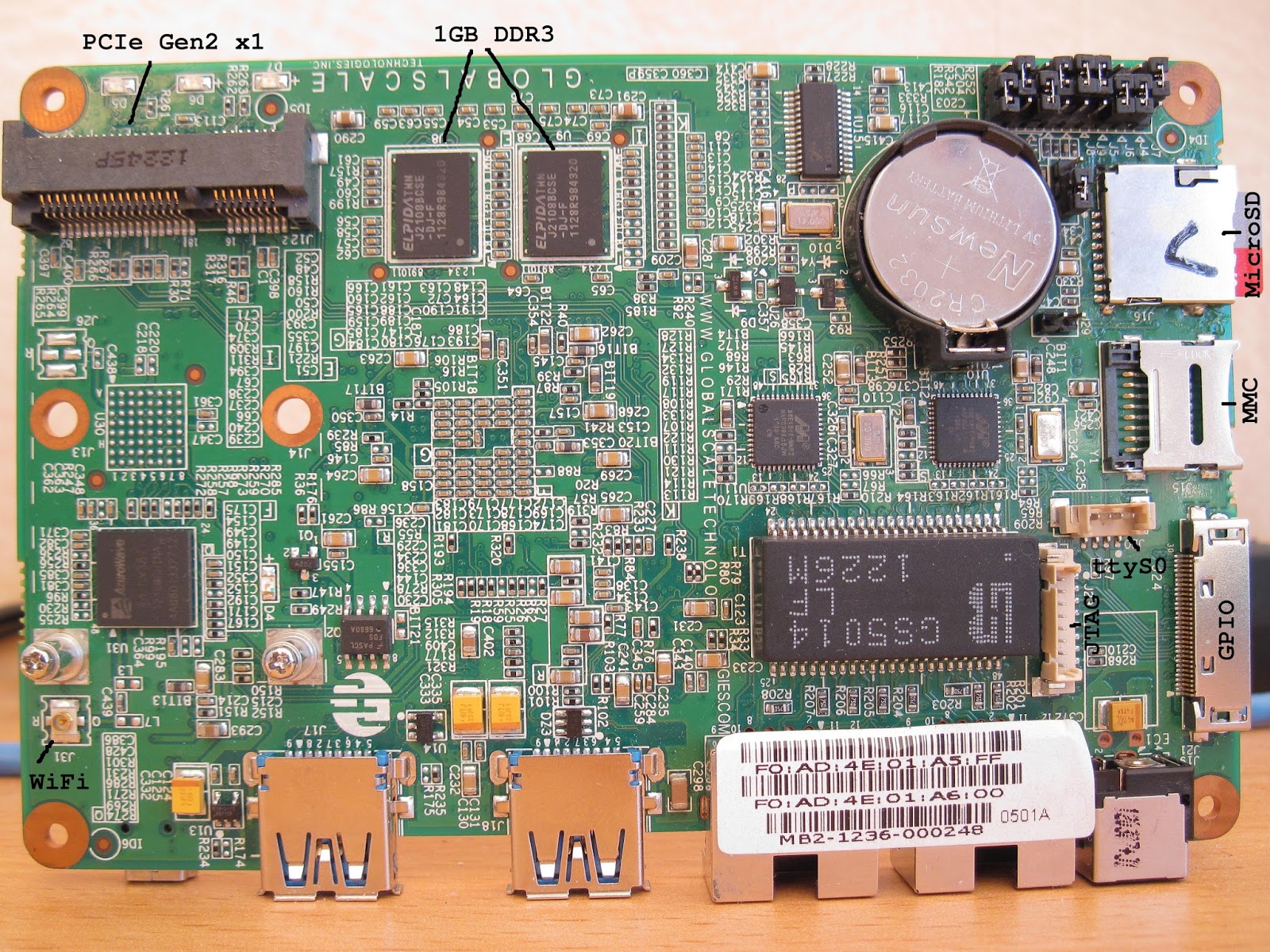

Board top
Among some nice things I noted, I found that the internal serial ports were connected to the same serial port as the USB console (which goes to a PL2303 chip), and since they're using pull-ups, both are usable simultaneously. The PL2303 chip is powered by the USB and not by the Mirabox so that you don't lose the ttyUSB from the client when you power-cycle the Mirabox. This is much appreciated, the Snowball should adopt such a design. The device does not heat much and the CPU can always be touched. The MicroSD and MMC internal connectors are directly connected to the USB2.0 ports of the SoC. The jumpers are there to change the CPU/cache/DRAM frequencies though I only identified a few of them at the moment.

The Good, the Bad and the Ugly

A debian is installed on the device. I quickly installed haproxy to see if the network performance was any better than with the Dockstar. I noticed that traffic would not flow at all ! After installing strace, I discovered that the splice() system call would systematically fail in an unexpected way, meaning that some nasty untested patches were applied to the kernel. So I went to their site to download the sources an found none at all. The only thing I could find there were a binary kernel image and a broken boot loader image (Note that a few days ago, the boot loader image was fixed there, and the kernel and U-Boot sources were finally released on Plugcomputer.org).

So I continued the tests by disabling splice() in haproxy and found that the performance was very low due to iptables and conntrack being hard-linked and impossible to disable.

So I looked on the net to find another kernel. I found one in Arch Linux ARM. Fine! Tried to boot it, it booted correctly and UBIFS complained about a lot of errors, then the kernel died consecutive to the inability to mount the root FS. After that the original kernel would also fail to mount the rootfs. Thanks to the captures I had taken earlier, I finally found that the config in the boot loader is wrong about the partitions sizes, which must have been hard-coded into their proprietary kernel that ignores the boot loader's settings. And it seems that UBIFS performs some recovery attempts before failing, resulting in a corrupted FS. Pfff.....

I could boot it with a Formilux rootfs and their proprietary kernel to recover the installation by reformating the partition and reflashing the original rootfs which is provided on their site. I got a bit angry at the product because it's full proprietary and bogus. I want to use it as a gigabit network sniffer and its network performance sucks because of the proprietary kernel!

First hope

Looking at kernel 3.7-rc sources, I found that the platform was recently introduced by the cool guys at Free Electrons, namely Thomas and Grégory, which are already known for porting Linux to a number of devices. So I contacted them to get some pointers and they told me about the Git repository where all their work is. I could test their latest work and could start hacking the device and providing them some feedback on some of their patches.

Second crash

Unfortunately I managed to boot a kernel with the incorrect partition table a second time and it again destroyed my rootfs and marked a lot of blocks as bad... Except that this time even after several passes of flash_erase and nand_write, there were some remains of "UBI" on some blocks, and I couldn't get rid of the fake bad blocks. Probably that the NAND driver is still a bit young... I finally used the nand scrub option in the boot loader to completely erase the rootfs partition... Error! This one is bogus too, it randomly erases other areas, and marks block 0 as bad ! (the boot loader). So now I must not cut power! I only had one attempt left! I reformated the whole flash using nand scrub again and all went fine. I had to reflash the U-Boot boot loader, but the one on the site above was defective. I finally found one on another site. It looked right, contained references to the reference design board. I crossed fingers and flashed it, checked that it was correctly flashed, then rebooted... Aie, Bricked!

BootROM 1.08
Booting from NAND flash
BootROM: Bad header at offset 00000000
BootROM: Bad header at offset 00004000
BootROM: Bad header at offset 00008000
BootROM: Bad header at offset 0000C000

Second disappointment

My only hope was flashing the NAND via JTAG. I took my GuruPlug JTAG adapter which directly connects to this board and to the GPIO board. But Armada370 is totally unknown from OpenOCD, and no patches are available. Then I was really angry at GlobalScale. They sold me a JTAG device to unbrick the mirabox and which I cannot use at all because the software to use it does not exist! I contacted the support, they offered me to reprogram it for $25, except that shipping costs are as high as the device's price. And they'd reinstall the same bogus kernel that I cannot use. So I declined and thought that I'd rather find some time to try to reverse-engineer the JTAG TAP and the flash controller on a spare week-end. (Note: I was recently told that GlobalScale is considering sponsoring a port to OpenOCD, which is nice then).

New hope

One or two months after leaving the device unused on my desk, I decided to get it to work using OpenOCD. I downloaded all the doc, read it, started editing some board and target files, and could detect the TAP ID, which means the JTAG link is OK. I managed to reset the board via JTAG, which was good.

While reading the OpenOCD doc, I noticed something changed in an xterm behind. It was my minicom connected to the Mirabox which stopped scrolling on the "BootROM Bad Header" messages, and which displayed "Trying to boot from UART" ! UART ? I searched the net and found references to kwboot which is a tool made for loading firmwares into Marvell SoC via the serial port. In fact, Thomas had suggested it to me a while ago but I forgot since I couldn't figure how I could use it. Anyway now I got hope again and left OpenOCD to completely focus on kwboot.

Booting an image using kwboot

So I downloaded kwboot. I initially didn't find it alone, it's integrated into U-Boot in this tree and depends on a number of includes from this tree. I was about to clone the whole repository when I found a precompiled binary version here.

This utility sends a "magic" sequence to the BootROM boot loader installed in the Armada370's ROM (or maybe in the small I2C flash that's next to it, I don't know). The magic is a 8-byte sequence : 0xBB 0x11 0x22 0x33 0x44 0x55 0x66 0x77. The boot loader reads this image before the first attempt to boot, and each time it loops over the whole flash image (which is quite long on the 1 GB NAND). So it's better to start sending the sequence with the Mirabox powered down, and then to power it up. That's why it's very important that USB consoles are powered by the PC and not by the device!.

Fixing the boot loader image

The original U-Boot image could not be loaded via kwboot. The reason is that the first byte of the image indicates the boot device. Here I have 0x8B which indicates the image boots from the NAND. To boot on the serial port, we need 0x69. Changing it by hand will not work because there's a checksum. kwboot is able to patch this byte and recompute the checksum. But it looks like the cheksumming algorithm has changed on this new platform, because a fixed image does not boot either, and the original image does not show the correct checksum.

I found another tool, kwuartboot. I tried it in case it would handle a different checksumming algorithm, but that did not work either, it failed very similarly. So I concluded that I had to find how to regenerate my boot loader image to boot from the serial port and write the correct checksum.

Find new doimage

I found various incompatible versions of the "doimage" utility used to produce the boot image. I finally found that a version packaged for ArmadaXP was compatible with my Mirabox. (Note that since the patched U-Boot sources have finally been released, there is no need anymore to use the ArmadaXP image). Here's how I managed to rebuild a working doimage utility :

1. retrieve this U-Boot patch

2. rebuild the sources from the patch :

$ mkdir tmp-tools-doimage
$ cd tmp-tools-doimage
$ patch -Ntp1 < ../u-boot-2009.08-mv78460-20110404.patch >/dev/null 2>&1
$ cd tools
$ tar cf - doimage_armada_xp | gzip -9 > ../../doimage_armada_xp.tar.gz
$ cd ../..
$ rm -rf tmp-tools-doimage
3. rebuilt the executable from the sources :
$ tar zxf doimage_armada_xp.tar.gz
$ cd doimage_armada_xp
$ make

Find the various parts in the original image

The sources helped me a lot understand the image format. There are two binary images included in the U-Boot image, one is the DDR3 initialization code, and another one is the boot loader itself. There are several headers in the image and checksums that are computed on the global image. So it is possible to extract the embedded images, if necessary to modify them, then to reassemble them together and put the 32-bit checksum on them. After probably more than one hundred of attempts, I found that I needed the following parts of my original mtd0 partition :
TypeOffsetLengthmd5sumBegins with
DDR30x2448584f4b165ce...02 00 00 00 5B 00 00 00
U-Boot0xC000675420c739a005...12 00 00 EA 14 F0 9F E5
These images can then be assembled together using the shiny new doimage utility, to produce a new u-boot.bin image :
$ doimage -T uart -D 0x600000 -E 0x6A0000 -G mtd0-hdr.bin \
  mtd0-uboot.bin u-boot.bin

Still fails to load at 48k and issue DDR3 on the console

I then tried to flash the image this way :
$ kwboot -b u-boot.bin /dev/ttyUSB0

Unfortunately, the mirabox would still reject this image, but in a new and more consistent way :   it systematically rejects the image after 48kB of data, and the green LED "D5" turns on   just at the moment of the hang. I switched to kwuartboot to see if I got the same error, and it   behaved exactly the same way. So I modified it to display the invalid characters it got that   confused it, and I saw "DDR3 Training Sequence". Wow! This means that the DDR3 code was   executed, because this line is normally displayed at boot when the Mirabox boots. So I suspected   that the DDR3 initialization code is loaded into the cache or some SRAM on the device, which must   then initialize DDR3 to load the rest. So if this code is executed early during the boot sequence   and displays things on the console port I'm using to upload an image, it is conceivable that it   breaks the upload sequence...

Patch the DDR3 thing to talk to ttyS1 instead

So I wondered how to shut that DDR3 code down. Since the device has two serial ports, I thought that it could be easier to make it chat on ttyS1 instead. ttyS0 is located at 0x10000 and ttyS1 is at 0x12000. I looked for occurrences of 0x10000 in the image and patched them to use 0x12000 instead. I was a bit scared because on ARM you don't have many bits for immediate values, and I was afraid not to be able to add a 2 there if some higher bit was set. This was not the case, the values were used absolute. I found 4 locations which needed to be patched in mtd0-hdr.bin : 0x1BC0, 0x1C08, 0x1D0C, 0x1D30. I then rebuilt the whole image using doimage :
$ doimage -T uart -D 0x600000 -E 0x6A0000 -G mtd0-hdr-uart1.bin \
  mtd0-uboot.bin u-boot-uart1.bin

New attempt to boot

Last step was to try to boot the image again :
$ ./kwboot  -b u-boot-uart1.bin -t /dev/ttyUSB0
Sending boot message. Please reboot the target...\
Sending boot image...
0 % [......................................................................]
1 % [......................................................................]
2 % [......................................................................]
Well, it goes further than 48kB this time, let's cross fingers... After about 45s, I got this :
99 % [.........................................................]
[Type Ctrl-\ + c to quit]

__   __                      _ _
|  \/  | __ _ _ ____   _____| | |
| |\/| |/ _` | '__\ \ / / _ \ | |
| |  | | (_| | |   \ V /  __/ | |
|_|  |_|\__,_|_|    \_/ \___|_|_|
        _   _     ____              _
       | | | |   | __ )  ___   ___ | |_
       | | | |___|  _ \ / _ \ / _ \| __|
       | |_| |___| |_) | (_) | (_) | |_
        \___/    |____/ \___/ \___/ \__|
** LOADER **

U-Boot 2009.08 (Sep 16 2012 - 22:50:06)Marvell version: 1.1.2 NQ
U-Boot Addressing:
       Code:            00600000:006AFFF0
       BSS:             006F8E40
       Stack:           0x5fff70
       PageTable:       0x8e0000
       Heap address:    0x900000:0xe00000
Board: DB-88F6710-BP
SoC:   MV6710 A1
CPU:   Marvell PJ4B v7 UP (Rev 1) LE
       CPU @ 1200Mhz, L2 @ 600Mhz
       DDR @ 600Mhz, TClock @ 200Mhz
       DDR 16Bit Width, FastPath Memory Access
PEX 0: Detected No Link.
PEX 1: Root Complex Interface, Detected Link X1
DRAM:   1 GB
       CS 0: base 0x00000000 size 512 MB
       CS 1: base 0x20000000 size 512 MB
       Addresses 14M - 0M are saved for the U-Boot usage.
NAND:  1024 MiB
Bad block table found at page 262016, version 0x01
Bad block table found at page 261888, version 0x01
FPU not initialized
USB 0: Host Mode
USB 1: Host Mode
Modules/Interfaces Detected:
       RGMII0 Phy
       RGMII1 Phy
       PEX0 (Lane 0)
       PEX1 (Lane 1)
phy16= 72
phy16= 72
Net:   egiga0 [PRIME], egiga1
Hit any key to stop autoboot:  0

Yesss! For those who want to experiment with this without bricking their devices,   I'm putting here  this working image with a modified prompt to display "Recover>>" instead of   "Marvell>>" so that it's always easy to tell what boot loader you're running from.

Now reflash the recovered device

Now that I'm on the device again for the first time in a few months, I don't want to see it go away. It's urgent to erase and reflash it. WARNING! do not copy-paste what follows if you don't understand what it is about, it will wipe out your whole device and may render it unusable! First, erase the whole flash :
Marvell>> nand erase clean

Let's check that the flash correctly shows 0xff everywhere :
Marvell>> nand dump 0
Page 00000000 dump:
        ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff
        ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff
        ff ff ff ff ff ff ff ff
        ff ff ff ff ff ff ff ff

OK. We'll pre-fill the memory with 0xFF before loading the boot loader there, to avoid   flashing crap :
Marvell>> mw.l 0x7000000 0xffffffff 0x00100000
Marvell>> md.b 0x7000000 100
07000000: ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff    ...............
070000f0: ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff    ...............
Now copy the original mtd0 image from a TFTP server (from a file called "mtd0" there) to that location :
Marvell>> tftpboot 0x7000000 mtd0
Marvell>> md.b 0x7000000 100
07000000: 8b 00 00 00 60 4e 0a 00 01 00 00 c0 00 c0 00 00    ....`N..........
07000010: 00 00 60 00 00 00 6a 00 00 02 01 00 00 00 01 0a    ..`...j.........
070000f0: aa 25 ad 00 ed 19 2b 60 00 23 ab 20 80 00 c0 19    .%....+`.#. ....

The contents look fine (note the 8b at the beginning which means that   this is a NAND flash image). If everything looks OK and only in this case, you   can write the memory contents down to the flash then control that it looks similar to   the dump above :
Marvell>> nand write 0x7000000 0 0x00400000
Marvell>> nand dump 0

Then reset the device, it should reboot directly from the flash. If it fails, you just   have to retry the procedure above and figure what you got wrong.
Marvell>> reset

Back to hacking the device again

Since the device is fixed and I don't fear losing it anymore, I'm back playing with it. I'm running it with a 3.8 kernel with all development patches from Free-Electrons, as well as a recent attempt I made to port Marvell's NAND Flash Controller driver to this kernel. Right now it works but the code is ugly, contains many copy-pastes and I don't trust it a lot. I found it safer to buy a microSD card and install my FS there.

I could also remove some of Marvell's patches from their ugly kernel (I could get splice() to work again) and rebase it on, but at this point in time, I think it does not make sense to spend more time with this dead kernel, better try to get most features working with 3.8 and 3.9-rc. Oh, and BTW, UBIFS managed to destroy my rootfs again using Marvell's kernel when it tried to mount an uncleanly shutdown rootfs! I don't know if it's the FS or the Flash controller which is to blame, but what's certain is that a filesystem driver should not destroy the data it's responsible for, and that it should at least offer tools to fix devices which report errors. Here, after any minimal error, the file system is definitely lost. So that's one more reason for switching to a replaceable microSD for the root FS.
There are still a number of issues that I would like to see fixed in future versions :
  • the mtdparts variable in the boot loader does not match the real partition size, which apparently is responsible for UBIFS corrupting my root FS.
  • the Ethernet MAC addresses at the bottom of the box are different from those on the sticker on the board ! I don't know which ones are the right one, so if I plug this device on a network with another one sharing the same addresses, it could cause trouble.
  • their bogus kernel needs some fixing. I don't understand why they patched (and broke) the splice() system call. Also, having iptables+conntrack hard-linked really is problematic (and there is no NOTRACK target).
  • the boot loader only reserves 4 MB for the kernel, which is too small for development kernels. Anyway you'll probably have to repartition the flash after the rootfs gets corrupted.
  • the internal jumpers and connectors are not documented.
  • I tried a dual-gigE mini-PCIe boards (i350-based Jetway ADMPEIDLA) and it did not work, it was not even detected. I don't know which one is the culprit since the NIC works on an Atom board and other cards work on this board.

A few captures

Here come a few captures of what people always want to see from a new board :-)
